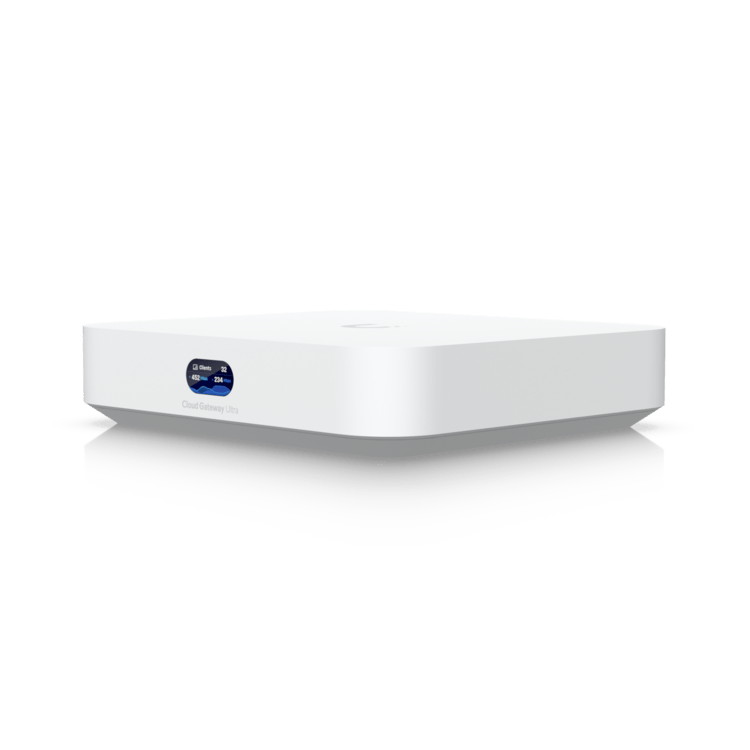

Ubiquiti Unifi Cloud Gateway Ultra
Compact Cloud Gateway with 30+ UniFi device / 300+ client support, 1 Gbps IPS routing, and multi-WAN load balancing.
Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
UniFi Application Suite: Network
Managed UniFi Devices: 30+
Simultaneous Users Connected: 300+
Max. WAN Port Count: 4
Default WAN Ports: (1) 2.5 GbE RJ45
IDS/IPS Throughput: 1 Gbps
Form Factor: Compact desktop
Max. Power Consumption: 6.2W
Overview | |
---|---|
Brand | Ubiquiti |
Form Factor | Desktop |
Unifi Applications | |
Unifi Network | Yes |
Managed Unifi Devices | 30+ |
Simultaneous Users | 300+ |
CPU | |
CPU Model | ARM® Cortex®-A53 |
CPU Spec. | 4-Core 1.5GHz |
Memory | |
Memory Size | 3GB |
Network | |
# of Max. WAN Ports | 4 |
# of 1GbE RJ45 LAN Ports | 4 |
# of 2.5GbE RJ45 LAN Ports | 1 |
Performance | |
Throughput | 1 Gbps |
IDS/IPS Throughput | 1 Gbps |
Power | |
Max. Power Consumption | 6.2W |
Power Method | USB type C (5V DC/3A) (Adapter included) |
