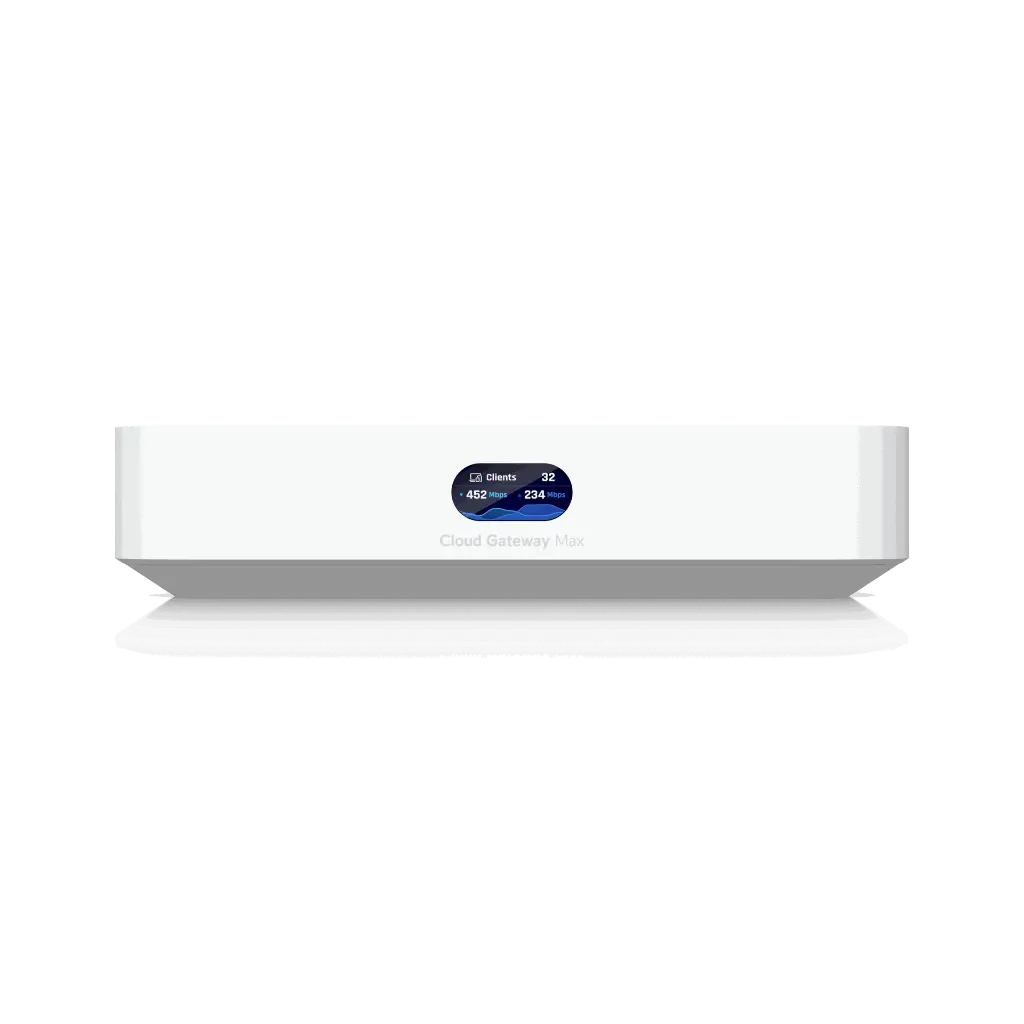

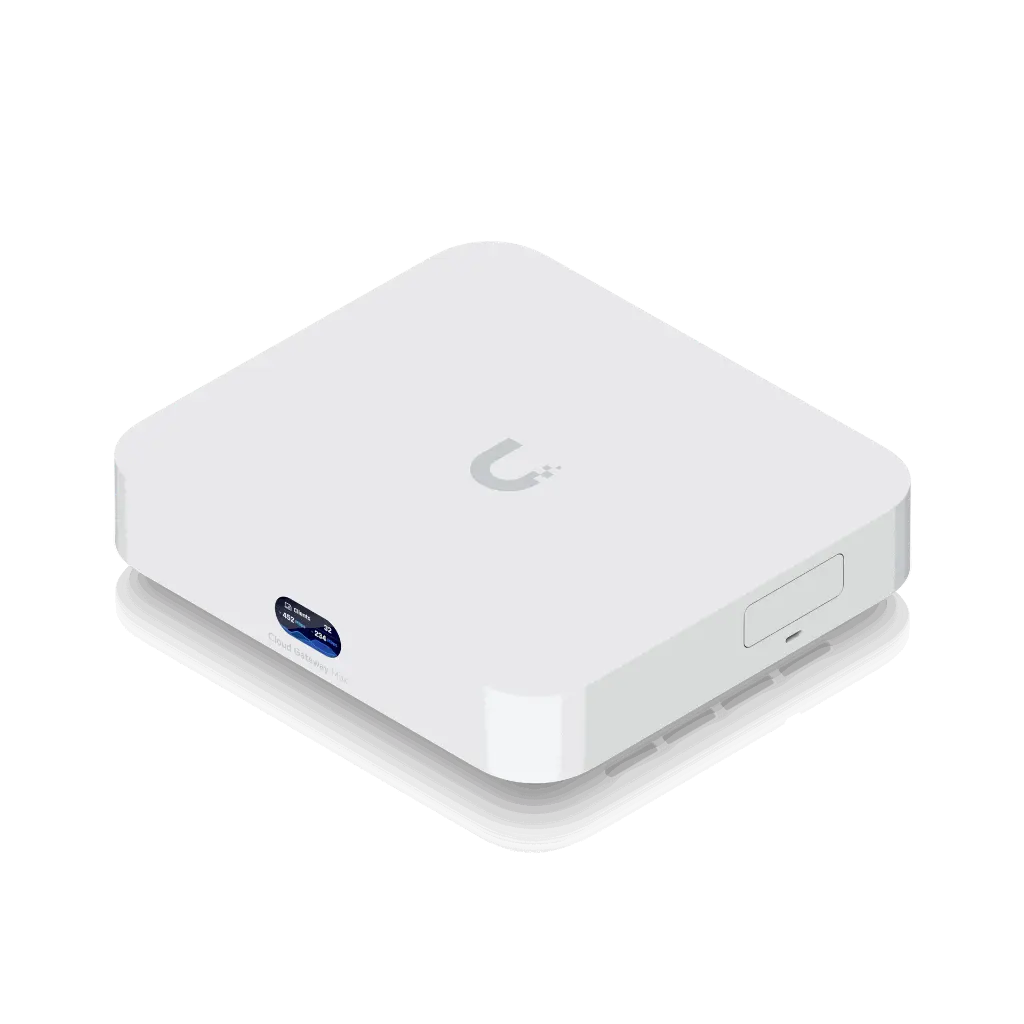

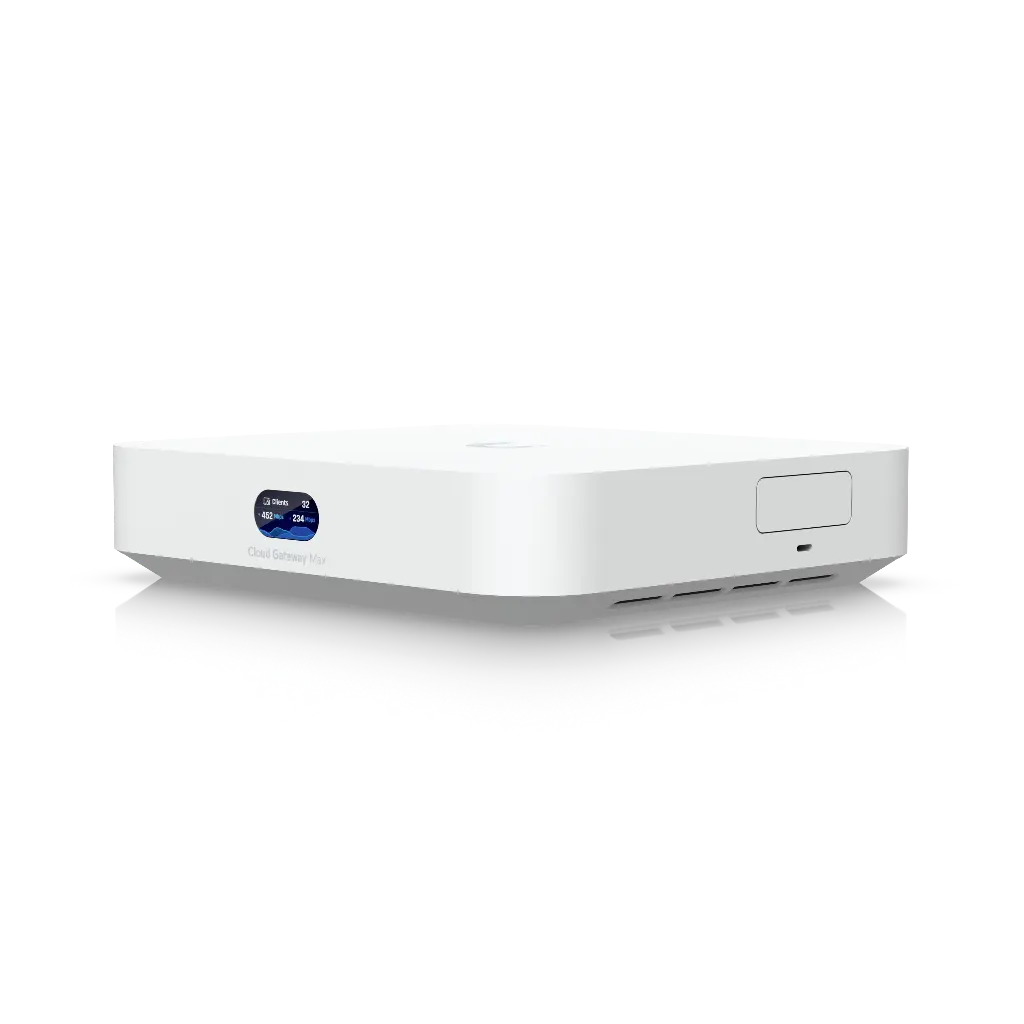

Ubiquiti Unifi Cloud Gateway Max
Compact Cloud Gateway with 30+ UniFi device / 300+ client support, 1 Gbps IPS routing, and multi-WAN load balancing.
Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
UniFi Application Suite: Network
Managed UniFi Devices: 30+
Simultaneous Users Connected: 300+
Max. WAN Port Count: 4
Default WAN Ports: (1) 2.5 GbE RJ45
IDS/IPS Throughput: 1 Gbps
Form Factor: Compact desktop
Max. Power Consumption: 6.2W
Timeline is an estimate. Subject to supplier availability and shipping conditions.
Please read & understand the Terms of Pre-Order before placing the order.
| Overview | |
|---|---|
| Brand | Ubiquiti |
| Form Factor | Desktop |
| Unifi Applications | |
| Unifi Network | Yes |
| Unifi Protect | Yes |
| Unifi Access | Yes |
| Unifi Talk | Yes |
| Unifi Connect | Yes |
| Managed Unifi Devices | 30+ |
| Simultaneous Users | 300+ |
| CPU | |
| CPU Model | ARM® Cortex®-A53 |
| CPU Spec. | 4-Core 1.5GHz |
| Storage | |
| # of M.2 NVMe Slots | 1 |
| Memory | |
| Memory Size | 3GB |
| Network | |
| # of Max. WAN Ports | 4 |

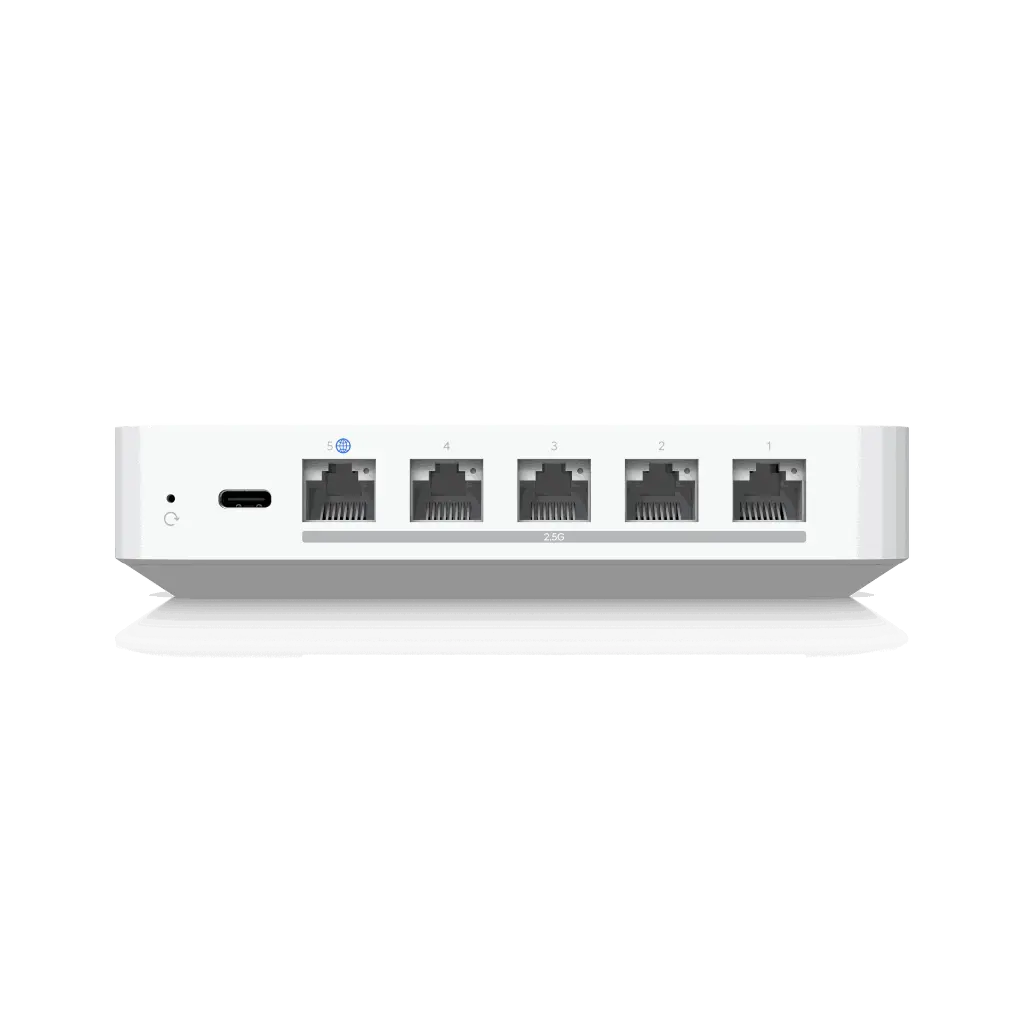

| # of 2.5GbE RJ45 LAN Ports | 5 |
| Performance | |
| Throughput | 2.3 Gbps |
| IDS/IPS Throughput | 2.3 Gbps |
| Power | |
| Max. Power Consumption | 16.1W |

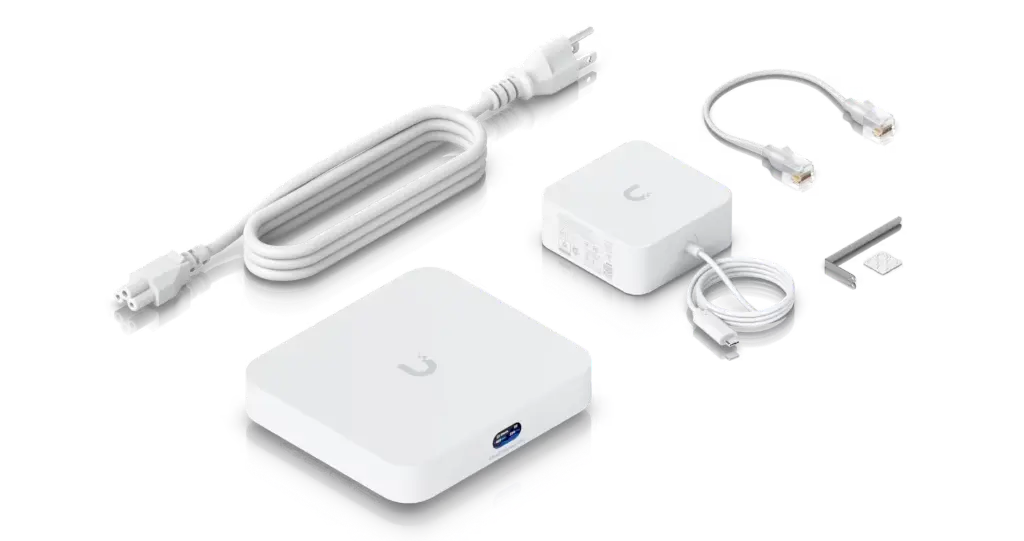

| Power Method | USB type C (5V DC/3A) (Adapter included) |
