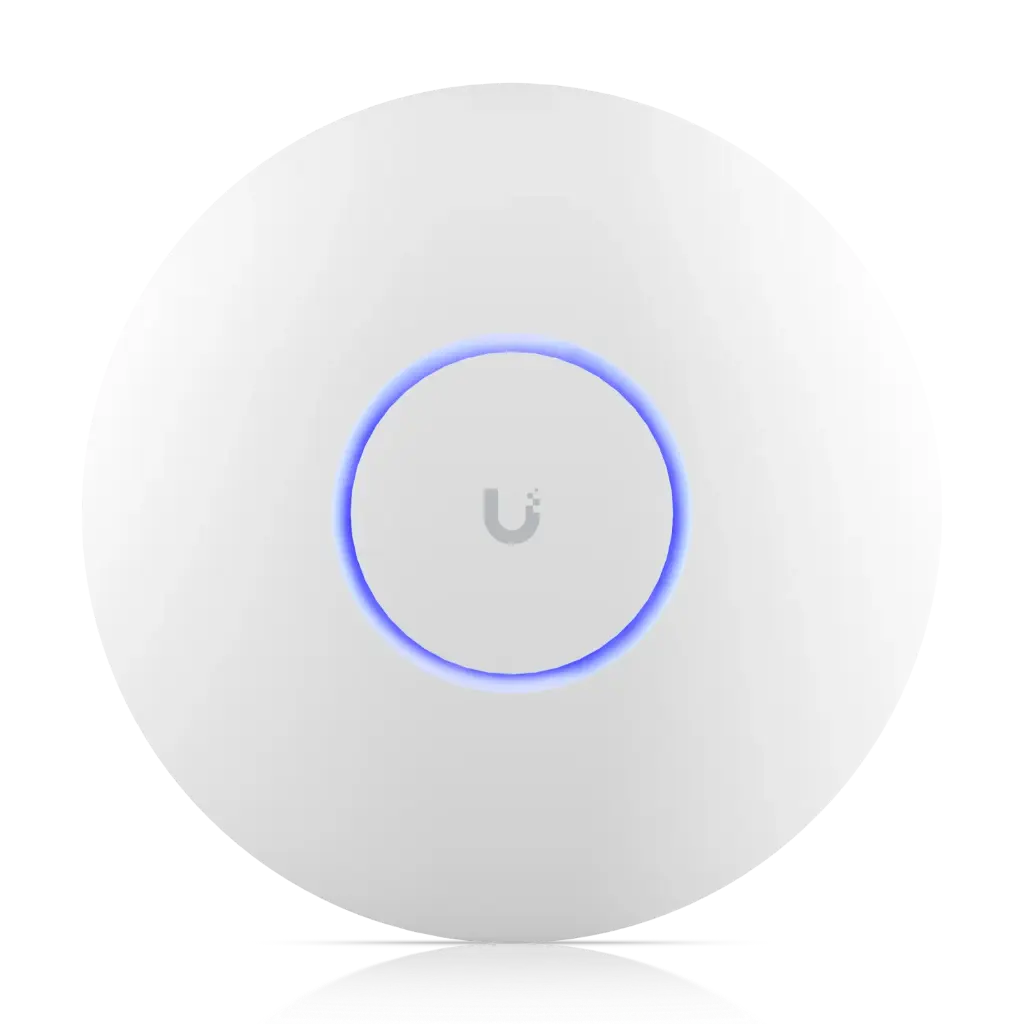

Ubiquiti Unifi U7 Pro Max
Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.
Timeline is an estimate. Subject to supplier availability and shipping conditions.
Please read & understand the Terms of Pre-Order before placing the order.
| Overview | |
|---|---|
| Brand | Ubiquiti |
| Mounting | Ceiling, Wall |
| Wireless Specification | |
| WiFi Standard | WiFi 7 |
| Total Spatial Streams | 8 |
| Coverage Area | 160 m² (1,750 ft²) |
| Network | |
| # of 2.5GbE RJ45 LAN Ports | 1 (Uplink) |
| Performance | |
| Max. Client Count | 500+ |
| MIMO 6GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO 5GHz-1 | 4 x 4 (DL/UL MU-MIMO) |
| MIMO 2.4GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate 6GHz | 5.8 Gbps (BW320) |
| Max. Data Rate 5GHz-1 | 2.4 Gbps (BW160) |
| Max. Data Rate 2.4GHz | 573.5 Mbps (BW40) |
| Antenna Gain 6GHz | 5.9 dBi |
| Antenna Gain 5GHz | 6 dBi |
| Antenna Gain 2.4GHz | 4 dBi |
| Max. TX Power 6GHz | 23 dBm |
| Max. TX Power 5GHz | 29 dBm |
| Max. TX Power 2.4GHz | 23 dBm |
| Data Rates 802.11be (WiFi 7) | 6 GHz: 7.3 Mbps to 5.8 Gbps | 5 GHz: 7.3 Mbps to 8.6 Gbps |
| Data Rates 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps |
| Data Rates 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps |
| Power | |
| Power Method | PoE+ |
| Max. Power Consumption | 25W |
