Pre-Order Only

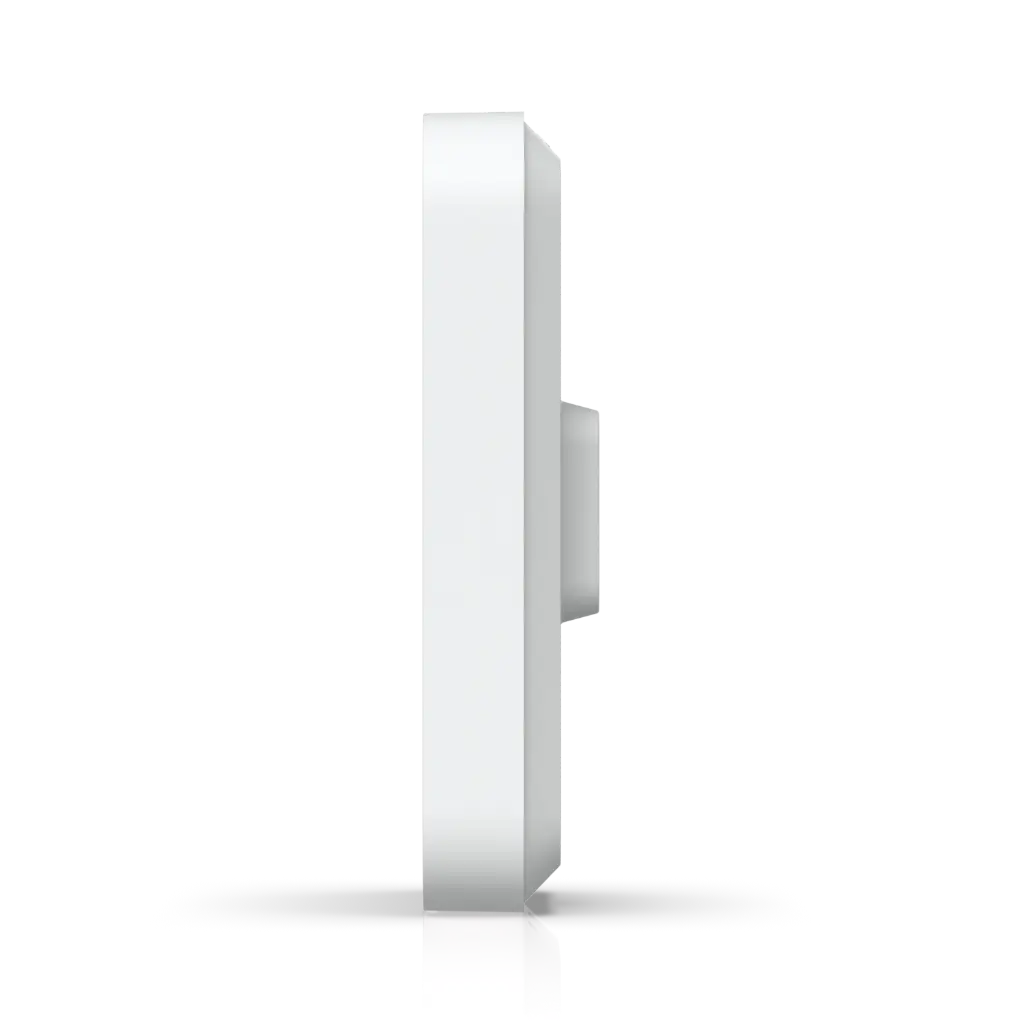

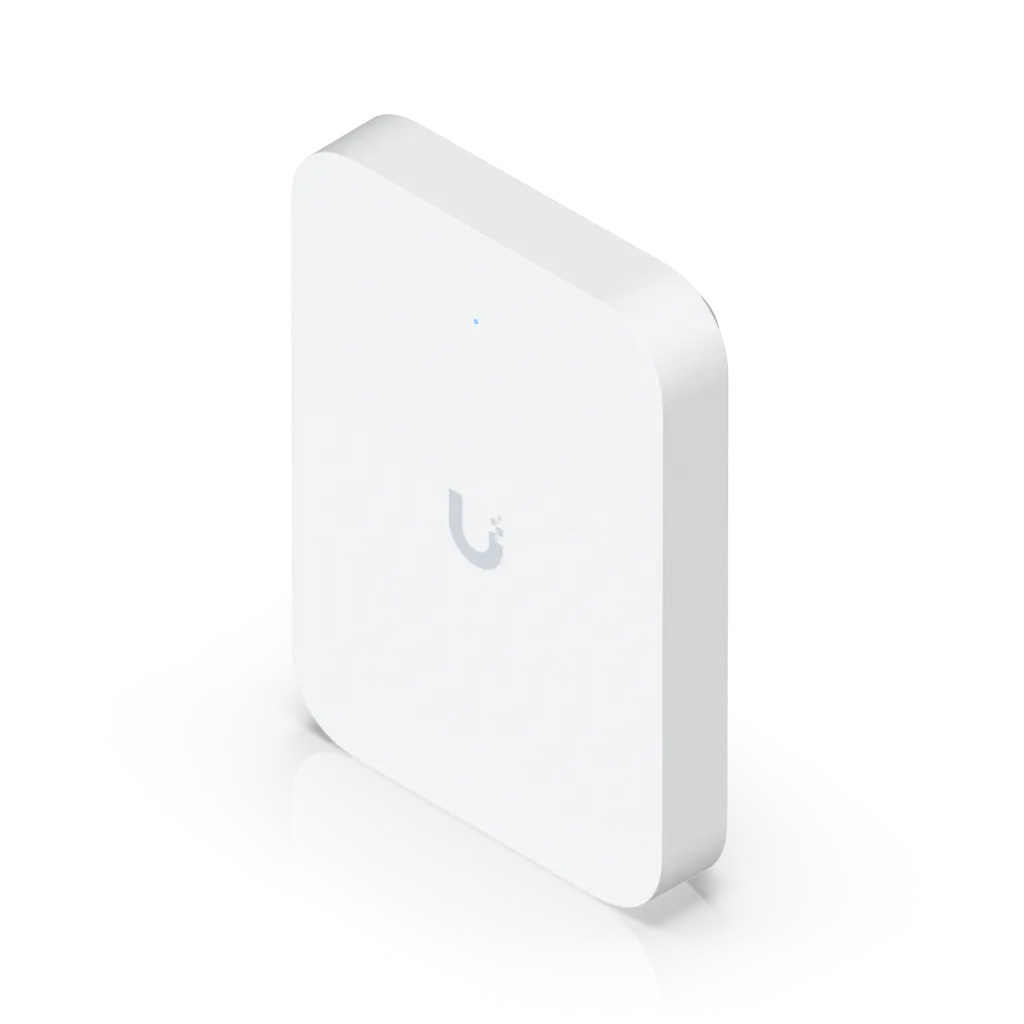

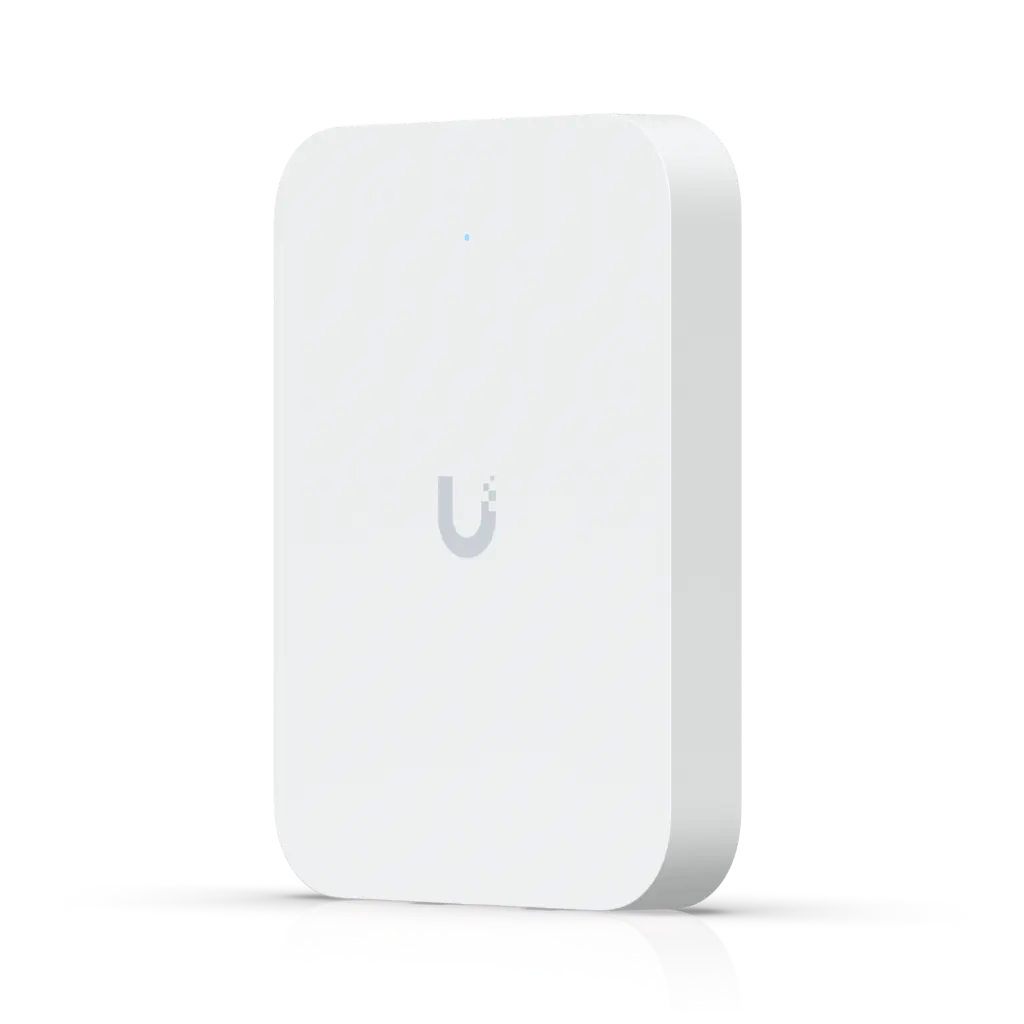

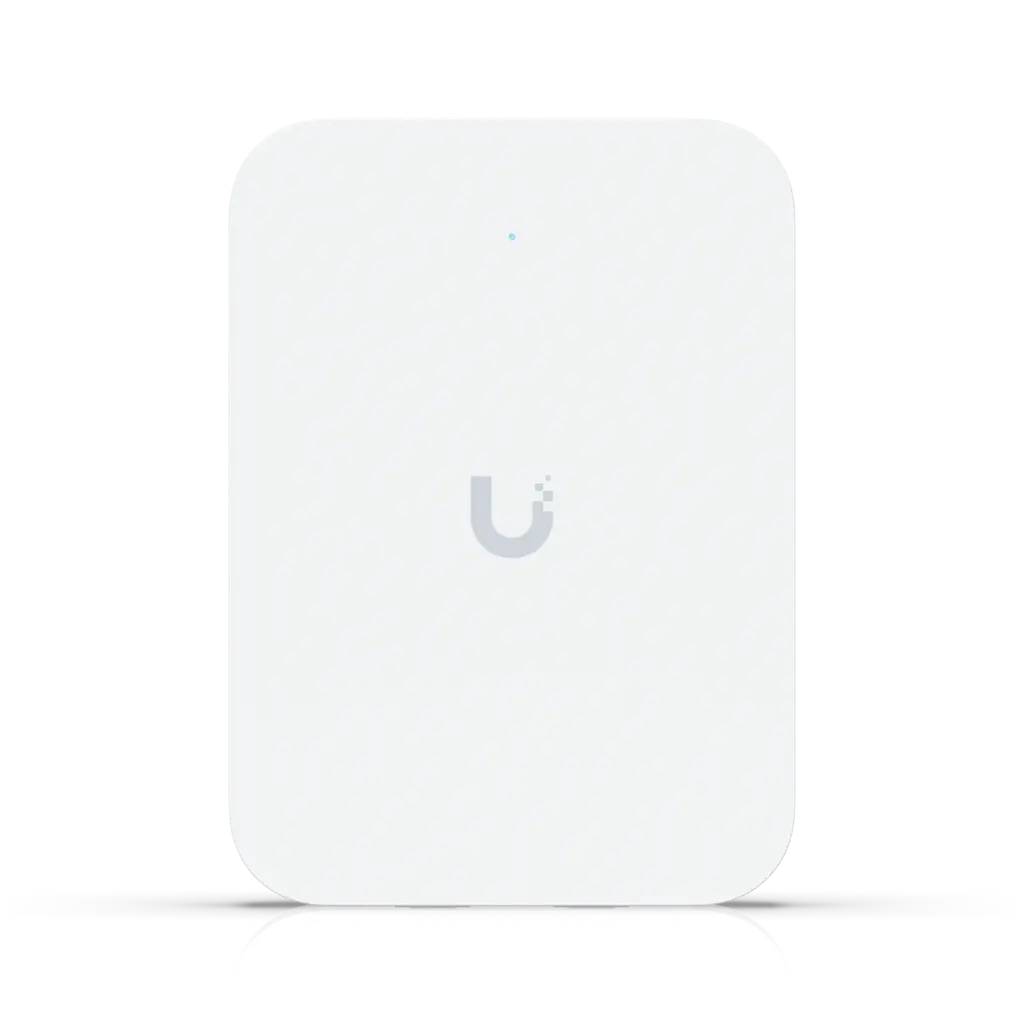

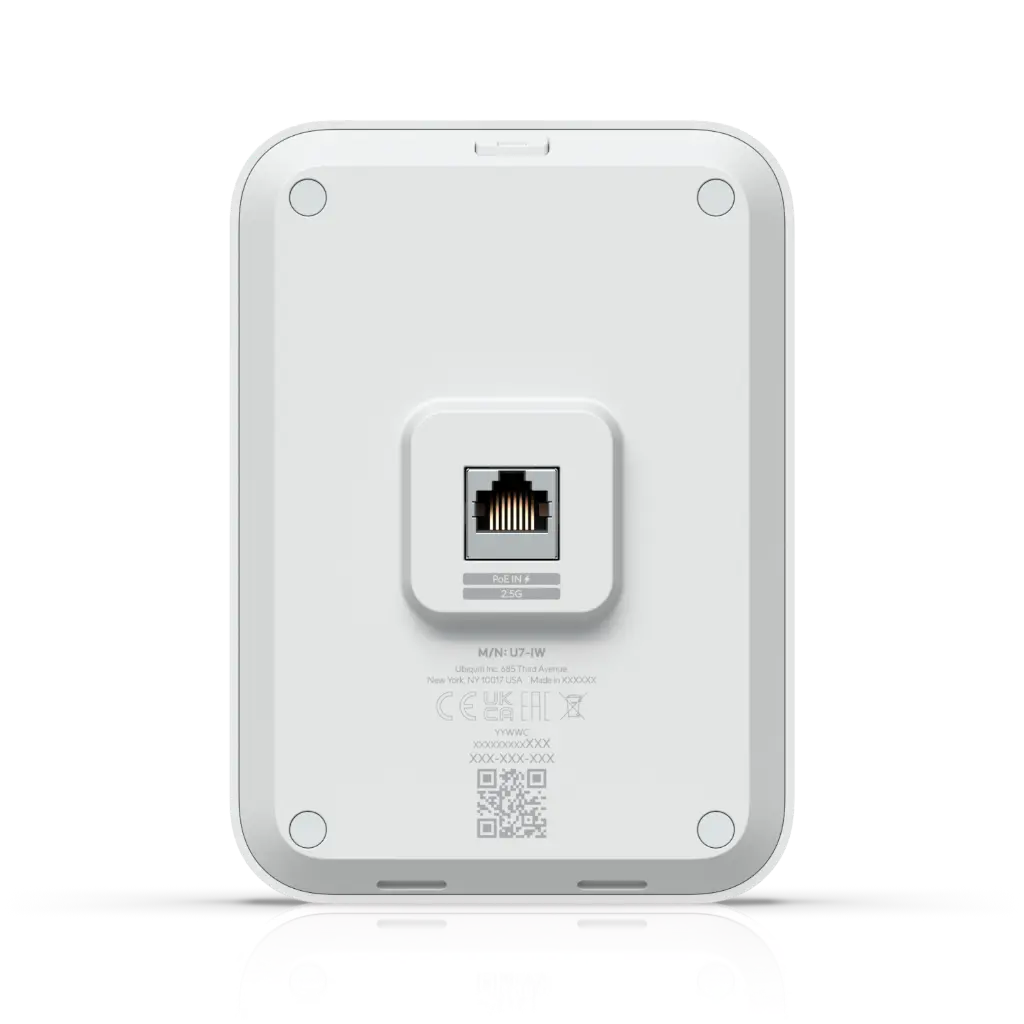

Ubiquiti Unifi U7 In-Wall
Wall-mounted WiFi 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.
Timeline is an estimate. Subject to supplier availability and shipping conditions.
Please read & understand the Terms of Pre-Order before placing the order.
| Overview | |
|---|---|
| Brand | Ubiquiti |

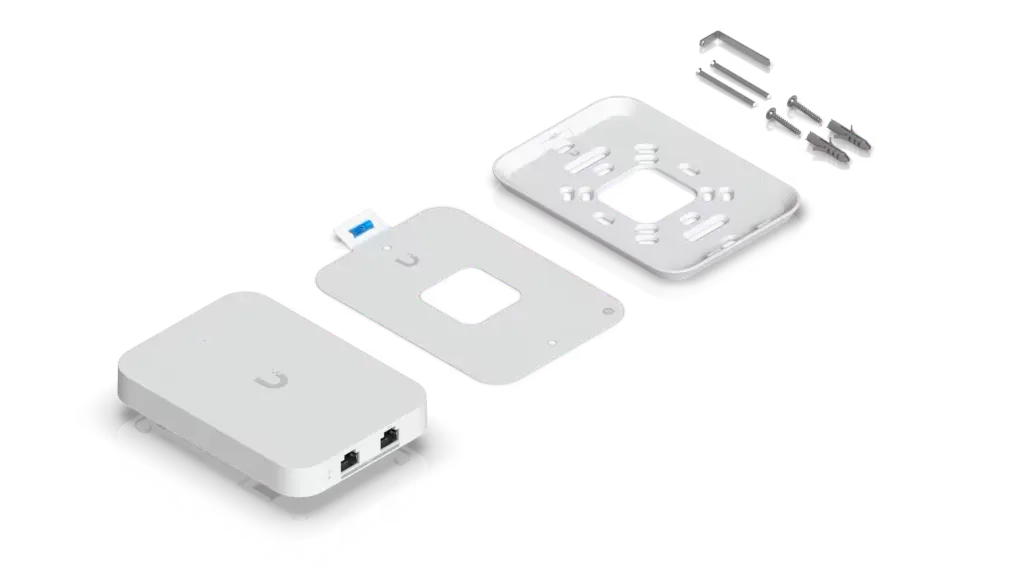

| Mounting | Wall |
| Wireless Specification | |
| WiFi Standard | WiFi 7 |
| Total Spatial Streams | 4 |
| Coverage Area | 115 m² (1,250 ft²) |
| Network | |
| # of 2.5GbE RJ45 LAN Ports | 1 (PoE output) + 1 (Uplink) |
| Performance | |
| Max. Client Count | 200+ |
| MIMO 5GHz-1 | 2 x 2 (DL/UL MU-MIMO) |
| MIMO 2.4GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate 5GHz-1 | 4.3 Gbps (BW240) |
| Max. Data Rate 2.4GHz | 688 Mbps (BW40) |
| Antenna Gain 5GHz | 8 dBi |
| Antenna Gain 2.4GHz | 4 dBi |
| Max. TX Power 5GHz | 24 dBm |
| Max. TX Power 2.4GHz | 23 dBm |
| Data Rates 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps |
| Data Rates 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps |
| Data Rates 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps |
| Power | |
| Power Method | PoE+ |
| Max. Power Consumption | 13W |
