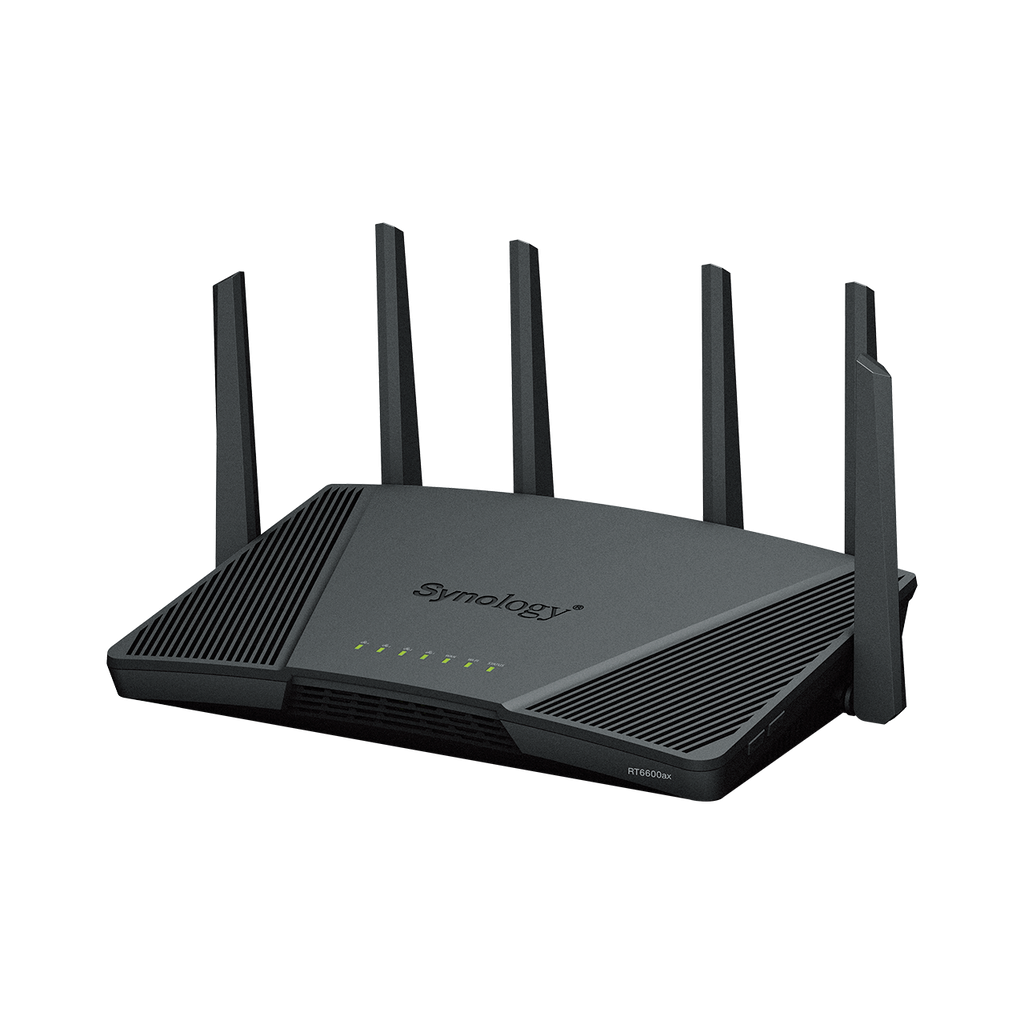

Synology RT6600ax Wi-Fi 6 Router
• CPU: Quad core 1.8 GHz
• Wireless standards: 802.11a/n/ac/ax 5 GHz, simultaneous tri-band
• Frequency and data rate: 5GHz-1 4800Mbps / 5GHz-2 1200Mbps / 2.4GHz 600Mbps
• Hardware Acceleration Engine: Layer 4 / Layer 7
• Memory: DDR3 1GB
• Antenna Type:
4x4 MIMO Omni-directional high-gain dipole (5GHz)
2x2 MIMO Omni-directional high-gain dipole (2.4GHz / 5GHz)
• LAN Port: 1x 2.5GbE (RJ-45), 3x Gigabit (RJ-45)
• WAN Port: 1x Gigabit (RJ-45), 2.5 GbE (RJ-45) x 1 (Dual WAN)
• External Ports: USB 3.2 Gen 1 x 1 (5V, 0.9A power output)
• 2 years manufacturer's warranty
| Overview | |
|---|---|
| Brand | Synology |
| Operating System | Synology Router Manager (SRM) |
| Form Factor | Desktop |
| Wireless Specification | |
| WiFi Standard | WiFi 6 |
| Total Spatial Streams | 8 (2.4GHz: 2, 5GHz-1: 4, 5GHz-2: 2, tri-band Wi-Fi) |
| Coverage Area | 325 m² (3,500 ft²) |
| CPU | |
| CPU Spec. | 4-Core 1.8GHz |
| Memory | |
| Memory Size | 1GB DDR3 |
| Network | |
| # of 1GbE RJ45 LAN Ports | 4 |
| # of 2.5GbE RJ45 LAN Ports | 1 |
| # of Max. WAN Ports | 2 |
| Performance | |
| Max. Data Rate 5GHz-1 | 4.8 Gbps |
| Max. Data Rate 5GHz-2 | 1.2 Gbps |
| Max. Data Rate 2.4GHz | 600 Mbps |
| MIMO 5GHz-1 | 4 x 4 (DL/UL MU-MIMO) |
| MIMO 5GHz-2 | 2 x 2 (DL/UL MU-MIMO) |
| MIMO 2.4GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Client Count | 200 |
| Power | |
| Power Method | AC/DC Adapter (included) |
| Max. Power Consumption | 11.11W |
| Warranty & Support | |
| Warranty | 2 Years |
